समुद्री उद्योग के लिए विश्वसनीय और टिकाऊ वायवीय एससीआर निकास गैस तितली वाल्व
Place of Origin | China |
---|---|
ब्रांड नाम | FABIA |
प्रमाणन | ISO9001,BV,CCS,DNV |
Model Number | 2 inch ~ 100 inch |
दस्तावेज | उत्पाद पुस्तिका पीडीएफ |
न्यूनतम आदेश मात्रा | 1 सेट |
मूल्य | विनिमय योग्य |
Packaging Details | Cartons/Wooden cases |
Delivery Time | 15-30 work days |
Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
Supply Ability | 100-1000 set per week |

निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xProduct Name | SCR Exhaust Gas Butterfly Valve | Valve Application | Ventilation |
---|---|---|---|
वाल्व सामग्री | स्टेनलेस स्टील | Valve Connection | Flanged |
Valve Operation | Pneumatic | Valve Certification | BV,DNV,CCS |
Valve Pressure | ≤0.25Mpa | Valve Seal | Stainless steel |
Valve Size | 2-100 inch | Valve Temperature | 500℃ |
वाल्व प्रकार | तितली | ||
प्रमुखता देना | टिकाऊ समुद्री तितली वाल्व,विश्वसनीय समुद्री तितली वाल्व,SCR समुद्री तितली वाल्व |

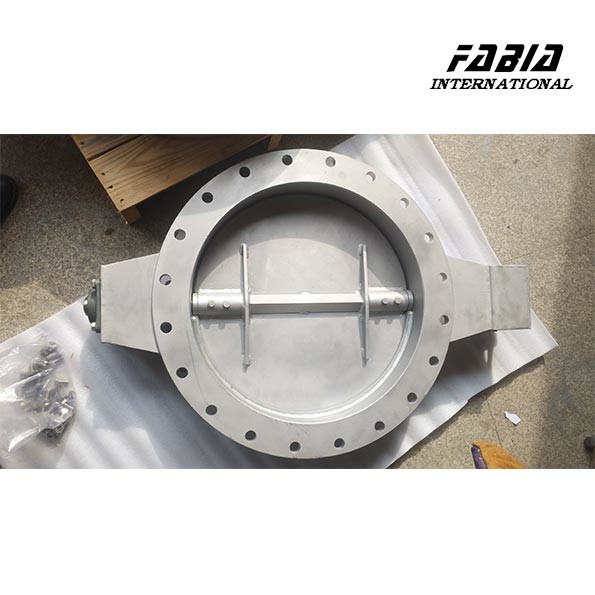

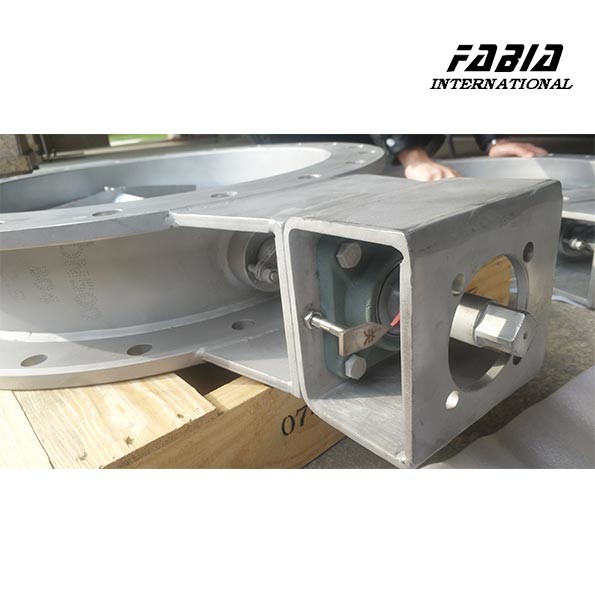

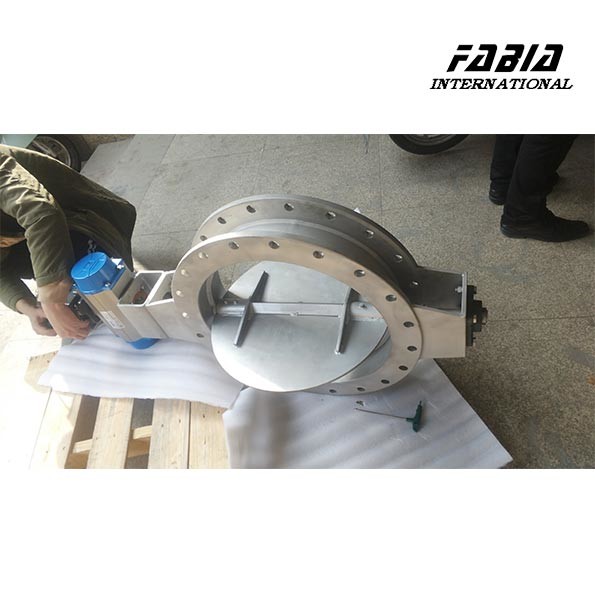

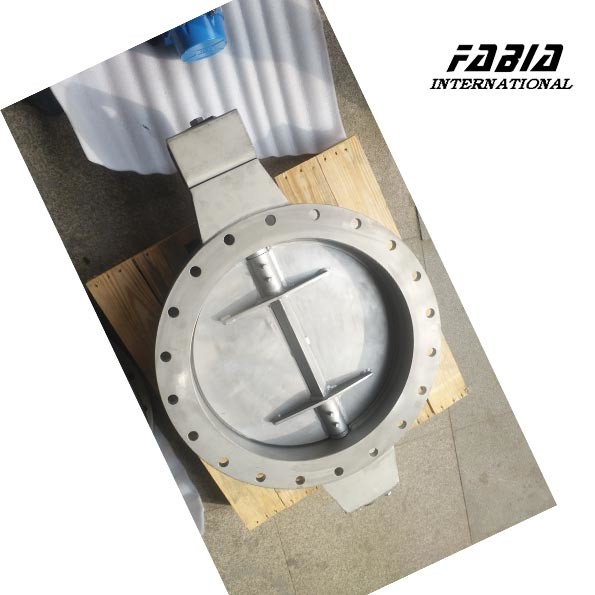

Pneumatic SCR Exhaust Gas Butterfly Valve Reliable and Durable for Marine Industry
1. Description:
SCR Exhaust Gas Butterfly Valve is mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen
oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.
In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe
system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.
2. Specification:
FABIA Valve Parameter List | ||
Valve type: | Flange type heavy-duty ventilation butterfly valve | |
Size: | 2inch ~ 100 inch | |
Material: |
316/316L/304/304L/ Corten |
|
Connection type: | Flange Connection | |
Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
Pressure rating: | ≤0.25Mpa | |
Temperature: | -≤500℃ | |
Model: | FB-D-3.......... |
3. Features:
- Simple and light in structure
- Suitable for low pressure air or other gas flow, pressure control and high temperature gas
- the main structural components of the valve are welded
- CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
- High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
- Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
- Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.
-
Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.
-
Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.
